How To Calculate Branch Circuits

Branch Circuits

1. Understanding the Basics

Ever wonder how your home’s electricity magically powers everything from your toaster to your TV? It all comes down to branch circuits! Think of them as the individual delivery routes in your electrical system. They take the electricity from your main panel and distribute it to different areas and appliances throughout your house. So, calculating these circuits isn’t just some nerdy electrical exercise; it’s essential for safety and efficiency. Imagine overloading a circuit that’s a recipe for tripped breakers, flickering lights, or worse, a fire hazard!

Now, I know what you might be thinking: “Electricity? Calculations? Sounds complicated!” But trust me, it’s not rocket science. We’re going to break down the process into manageable steps, so you can understand how to determine the correct size and number of branch circuits for your needs. No confusing jargon, just straightforward explanations. Get ready to roll up your sleeves and dive in you’ll be surprised at how empowering it feels to understand your home’s electrical system!

Before we jump into the math, let’s establish some core principles. Branch circuits are typically rated for 15, 20, 30, or 50 amps. The amperage rating determines the amount of load (electrical devices) that the circuit can safely handle. It’s like knowing the weight limit of a bridge before you drive a truck across it. Exceeding the ampacity of a circuit can cause the wires to overheat, leading to insulation damage and potential fire. Understanding these ratings is a fundamental step to ensure electrical safety.

Think of your house as a living, breathing electrical organism. Each branch circuit is like an artery, delivering vital energy to keep it running smoothly. If one of those arteries gets clogged (overloaded), the whole system suffers. That’s why accurate calculation is so important. It ensures that each part of your home receives the power it needs without causing any strain or hazards. So, let’s get started on learning how to properly size those electrical arteries!

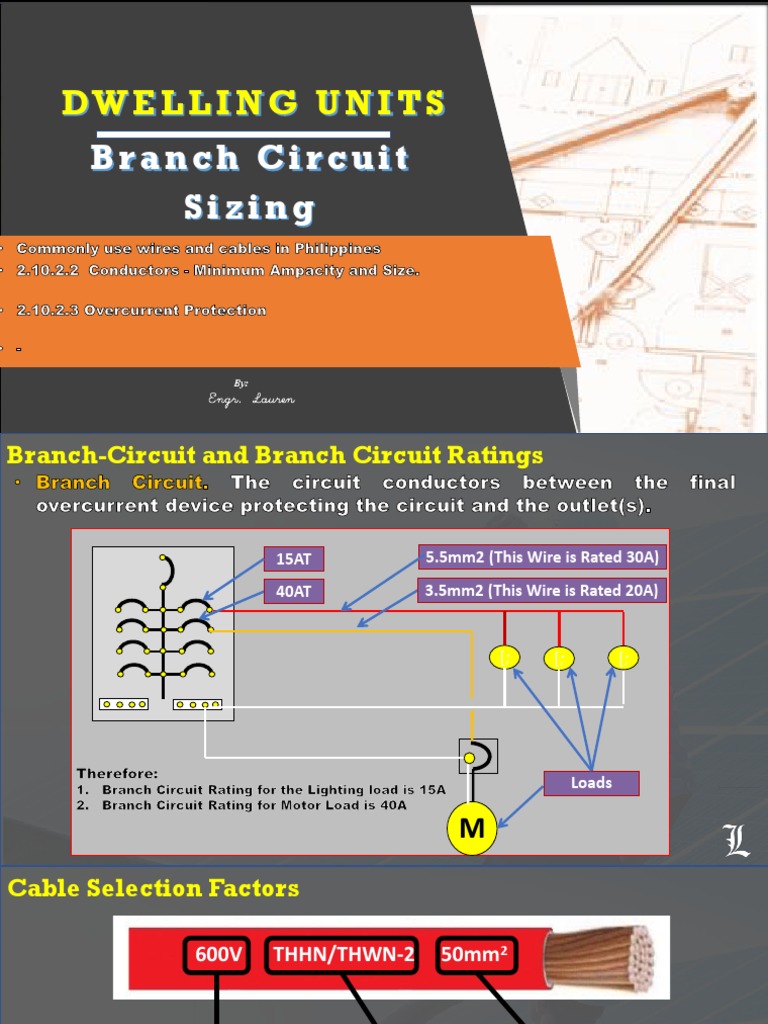

Branch Circuits Sizing Part1 PDF Electrical Wiring Insulator

Calculating the Load

2. Doing the Math (It’s Easier Than You Think!)

Okay, time for some calculations! Don’t panic; we’ll keep it simple. The first step is to determine the total load on each circuit. This means figuring out how much power all the devices connected to that circuit will draw. Most appliances have a nameplate or sticker that lists their wattage. Wattage (W) is the measure of how much electrical power a device uses. And here’s the magic formula: Amps (A) = Watts (W) / Volts (V). In most homes, the voltage is 120 volts for standard outlets.

Let’s say you have a lamp that uses 100 watts. To find the amperage, you divide 100 watts by 120 volts, which gives you approximately 0.83 amps. Write that down! Now, go around and identify all the devices that will be on a particular circuit and calculate their individual amperages. Add them all together, and you’ll have the total load for that circuit. This is a critical step because it dictates what size circuit breaker and wiring you’ll need.

There are some important considerations. For general lighting and receptacle circuits, the National Electrical Code (NEC) requires you to account for a minimum load of 3 volt-amperes (VA) per square foot. VA is essentially the same as watts for our purposes. This ensures that you have enough capacity for future electrical needs. Also, for appliances like air conditioners or refrigerators, you need to account for their starting wattage, which is often higher than their running wattage. This is because these devices require a surge of power to get going.

Let’s consider an example. Suppose you are calculating the load for a kitchen countertop circuit. You have a microwave (1000W), a coffee maker (800W), and a toaster (1200W). First, convert the wattage to amps for each appliance: Microwave (1000W / 120V = 8.33A), Coffee Maker (800W / 120V = 6.67A), Toaster (1200W / 120V = 10A). Add these together, and you get a total of 25 amps. Since a standard 20-amp circuit breaker is likely too small for this load, you’d want to either use multiple circuits or avoid using all three appliances simultaneously. See? Not so scary after all!

How To Calculate Branch Circuit Protection Levels Wiring Diagram

Choosing the Right Circuit Size

3. Playing it Safe with Ampacity

Now that you know how to calculate the total load on a circuit, you need to choose the right circuit size. This is where ampacity comes into play. Ampacity is the maximum amount of current, in amps, that a conductor (wire) can carry continuously without exceeding its temperature rating. The NEC specifies ampacity ratings for different wire sizes and insulation types. Using the wrong wire size can lead to overheating and fire hazards, so this step is non-negotiable.

The standard wire sizes used in residential wiring are 14 AWG (American Wire Gauge) for 15-amp circuits, 12 AWG for 20-amp circuits, and 10 AWG for 30-amp circuits. These are general guidelines, and you should always consult the NEC or a qualified electrician to determine the correct wire size for your specific application. Remember, it’s always better to err on the side of caution when it comes to electrical safety. Over-sizing the wire is always better than under-sizing.

It’s a good practice to include a safety factor when choosing the circuit size. The NEC recommends that the maximum load on a circuit should not exceed 80% of the circuit’s rating. For example, on a 20-amp circuit, the maximum continuous load should be no more than 16 amps (20 amps x 0.80 = 16 amps). This provides a buffer to prevent the circuit breaker from tripping frequently and ensures that the wires don’t overheat under normal operating conditions.

Think of the safety factor as a reserve tank. You might be able to drive your car right down to empty, but it’s a much better idea to keep a little extra fuel in the tank. Similarly, a little extra capacity in your electrical circuit gives you peace of mind and ensures that your electrical system operates safely and reliably. Choose the proper circuit size based on ampacity, and always include a safety factor. It’s the best way to protect your home and your loved ones from electrical hazards.

How To Identify Branches In A Circuit

Dedicated Circuits

4. Giving Appliances the VIP Treatment

Some appliances have unique electrical needs and require their own dedicated circuits. These are circuits that serve only one appliance and aren’t shared with any other devices. Why? Because these appliances typically draw a lot of power or have specific operating characteristics that could interfere with other devices on the same circuit. Think of it as giving these appliances the VIP treatment — they get their own dedicated line of power.

Common examples of appliances that require dedicated circuits include refrigerators, freezers, washing machines, dryers, dishwashers, microwave ovens, garbage disposals, electric ranges, and air conditioners. The NEC has specific requirements for these appliances, and it’s essential to follow them carefully. For example, a refrigerator should have its own 15- or 20-amp circuit to prevent food spoilage if another appliance causes the circuit to trip. Similarly, an electric dryer needs a 30-amp, 240-volt circuit to provide enough power for the heating element.

Installing a dedicated circuit involves running a new wire from the main electrical panel to the location of the appliance. The wire size and breaker size must be appropriate for the appliance’s power requirements. It’s also important to install the correct type of receptacle for the appliance. For example, a dryer requires a special 3- or 4-prong receptacle that’s different from standard household outlets. When in doubt, always consult a qualified electrician to ensure that the dedicated circuit is installed safely and correctly.

When you see that shiny new appliance, make sure its electrical needs are properly met. Dedicate circuits are not just recommended; they’re often essential for safety and performance. Don’t try to squeeze a high-power appliance onto an existing circuit — it’s a recipe for disaster. Follow the manufacturer’s instructions and the NEC guidelines to ensure that each appliance has the dedicated circuit it needs. Think of it as giving each appliance its own room to breathe — it’ll run better, last longer, and keep your electrical system humming happily.

How To Calculate Branch Circuits

Putting it All Together

5. From Start to Finish, Ensuring Accuracy

Alright, let’s tie everything together with a step-by-step guide on calculating branch circuits. This is the moment of truth — where we put all that knowledge to work! Follow these steps carefully to ensure you’re accurately sizing your branch circuits, making your home a safer and more efficient electrical environment.

Step 1: Identify the Appliances and Devices: Make a list of all the appliances, lights, and other devices that will be connected to each circuit. Be as thorough as possible. Don’t forget about smaller items like phone chargers and lamps. Step 2: Determine the Wattage of Each Device: Check the nameplate or sticker on each device to find its wattage. If the wattage is not listed, you can calculate it using the formula: Watts = Volts x Amps. Step 3: Calculate the Amperage of Each Device: Divide the wattage of each device by the voltage (usually 120 volts) to find its amperage: Amps = Watts / Volts. Step 4: Add Up the Amperages: Sum the amperages of all the devices on the circuit to find the total load. Step 5: Apply the 80% Rule: Multiply the circuit’s rating (15, 20, 30, or 50 amps) by 0.80 to find the maximum allowable load. Step 6: Choose the Correct Wire Size: Refer to the NEC or consult a qualified electrician to determine the appropriate wire size for the circuit’s amperage. Step 7: Install the Correct Circuit Breaker: Choose a circuit breaker that matches the circuit’s rating. For example, use a 20-amp breaker for a 20-amp circuit.

Remember, accuracy is key! Double-check your calculations and measurements to avoid mistakes. If you’re unsure about any step, don’t hesitate to consult a qualified electrician. Electrical work can be dangerous, and it’s always better to be safe than sorry. Taking the time to properly calculate branch circuits will not only make your home safer, but it can also prevent frustrating problems like tripped breakers and overloaded circuits. It’s an investment in your home’s electrical health and your peace of mind.

And there you have it! Calculating branch circuits isn’t some mysterious art — it’s a straightforward process that anyone can learn with a little bit of guidance. By following these steps and understanding the underlying principles, you can ensure that your home’s electrical system is safe, efficient, and reliable. So, get out there, do your calculations, and give your electrical system the care it deserves. You (and your appliances) will be glad you did!
